12 MONTHS WARRANTY

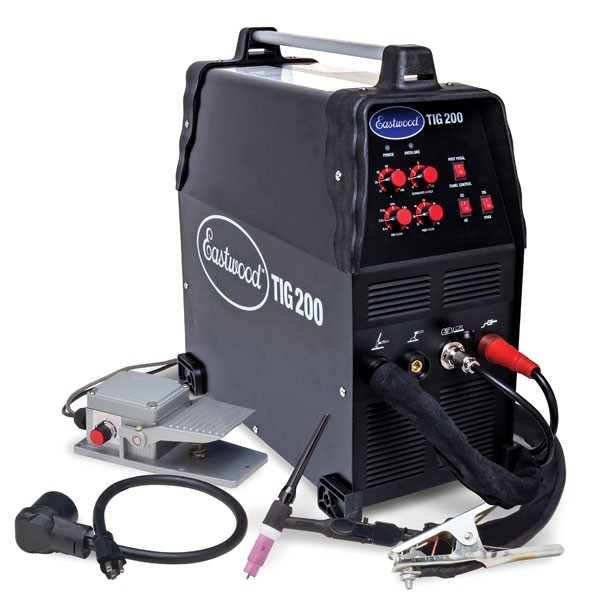

The TIG-200/250/315ACDC welder offers industrial TIG features at a DIY price for home auto fabricators or pro technicians. This specially engineered 200/250/315-amp Eastwood TIG Welder offers affordable, professional-quality TIG welding on aluminum, stainless steel and mild steel (sheet, tube or bar stock), and precise welding of thinner-gauge materials up to ¼-inch thick. With its versatile design, powerful welding capabilities and guaranteed quality, this welder is the last one many auto restorers will ever need.
Operates on either 110vAC, 15-amp circuit or 220vAC, 30-amp circuit.
1/4"-thick welding capacity on 220VAC.
High-frequency start for precise arc control.
Square-wave inverter for accurate aluminum welding.
"WP-17"-type torch accepts common cups and collets with up to 1/8" electrodes.
TIG Welding AC Duty Cycle (%): 120VAC 60% at 145 amps, 220VAC 60% at 190 amps)
Stick Welding Feature - welds in AC and DC Positive/Negative.
Technical Parameters
| Model | TIG200ACDC-110V | TIG220ACDC-220V | TIG250ACDC2-220V | TIG250ACDC3 | TIG315ACDC | ||||
| Rated Input Voltage | 1P 110V | 1P 220V | 1P 220V | 3P 380V | 3P 380V | ||||
Welding Mode | MMA | TIG | MMA | TIG | MMA | MMA | TIG | MMA | TIG |
| Rated Input Power | 4.5KW | 2.7KW | 6.6KW | 4.1KW | 8.4kW | 7.9KW | 5.9KW | 9.8KW | 8.4KW |
| Rated Input Current | 55.9A | 34.0A | 40.8A | 26.0A | 52.3A | 12.9A | 9.0A | 14.9A | 13.7A |
| Rated Output Current Range | 10-140A | 10-150A | 10-230A | 10-140A | 10-140A | ||||
| Duty Cycle (40°C 10min) | 60%140A, 100%108A | 60%150A, 100%116A | 60%230A, 100%250A | 60%230A, 100%250A | 60%230A, 100%250A | 60%270A, 100%209A | 60%315A, 100%244A | ||
| Open Circuit Voltage | 56V | 56V | 56V | 56V | 56V | ||||
| Efficiency | Above 80% | Above 80% | Above 80% | Above 85% | Above 85% | ||||
| Power Factor | 0.73 | 0.73 | 0.73 | 0.93 | 0.93 | ||||
| N.W | 22.8KG | 22.8KG | 30.5KG | 33.7KG | 34.5KG | ||||
| G.W | 24.8KG | 24.8KG | 33.0KG | 36.7KG | 37.1KG | ||||
| Packing Dimension | 635×295×570mm | 635×295×570mm | 635×295×570mm | 780×305×610mm | 780×305×610mm | ||||
(1) Ground Cable with Clamp (10’)
(1) WP #17 TIG Torch (14’)
(1) Instruction Manual
