DC 48V Low-Voltage Battery Powered Welder 150A(External Battery Pack)

AK-170

Description:

AK-170 operates with an external 48V lithium battery, delivering a stable 150A output with a temporary duty cycle of 100%. It is compatible with multiple portable power stations from our company, providing flexible, high-performance welding solutions for various on-site applications.

Inquiry

Specifications Features Applications

External Battery Specifications
Battery type	NCM Lithium Ion battery cell
Battery voltage	DC 39-54.6V
Battery capacity	N/A

Welding Specifications
Welding Process	MMA
Output current	10-150A
Suitable electrode diameter	1.6-3.25mm
Pieces 2.5mm electrode	Depend on the external Battery Pack
Pieces 3.2mm electrode	Depend on the external Battery Pack
Duty Cycle	100%

Charger Specifications
Charger voltage	AC 100-240V 50/60Hz
Charger output	57.6V 15A
Charging time	Depend on the external Battery Pack
Charging cycles	1,500 (capacity > 80%)

Working Temperatures
Operating temperature	-20°C up to 40°C
Charging temperature	0°C up to 30°C
Storage temperature	0°C up to 25°C

Dimensions and Weight
Dimensions (L x W x H)	372x182x320mm
Weight	5.5kg

Other
Ingress protection class	IP21 (indoor)
Warranty	12 months

Portable & Flexible

Compatible with multiple 48V lithium battery power stations from our company.

High Performance

Delivers stable 150A welding current for reliable operation.

100% Duty Cycle

Can handle continuous welding tasks without overheating.

Energy Efficient

Versatile Applications

Suitable for various on-site welding needs including maintenance, construction, and DIY projects.

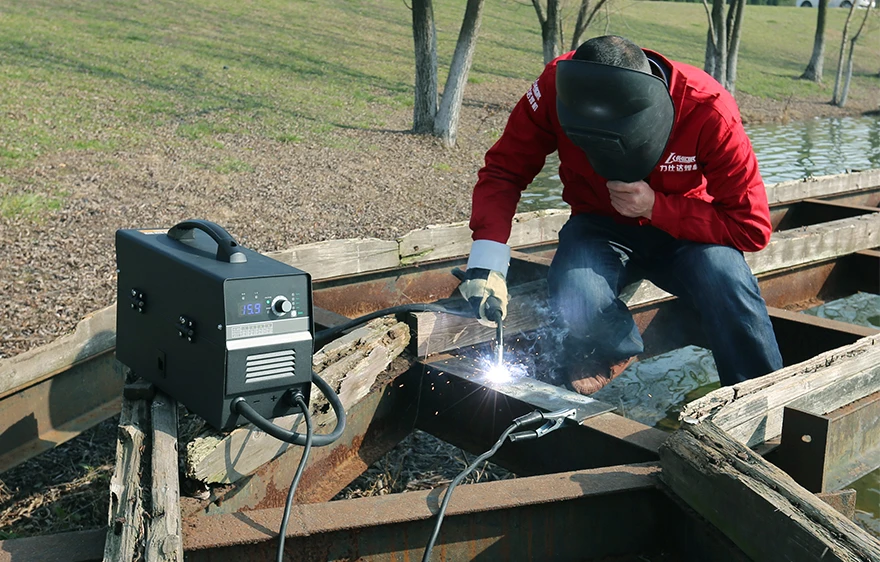

The Battery-powered MMA Inverter Welder is a versatile welding tool designed for on-the-go and remote welding tasks. Its primary applications include outdoor construction, maintenance and repair, automotive work, and situations where access to mains power is limited. With its compact and portable design, it is ideal for professionals and DIY enthusiasts who require flexibility and reliability in welding operations.
